Description

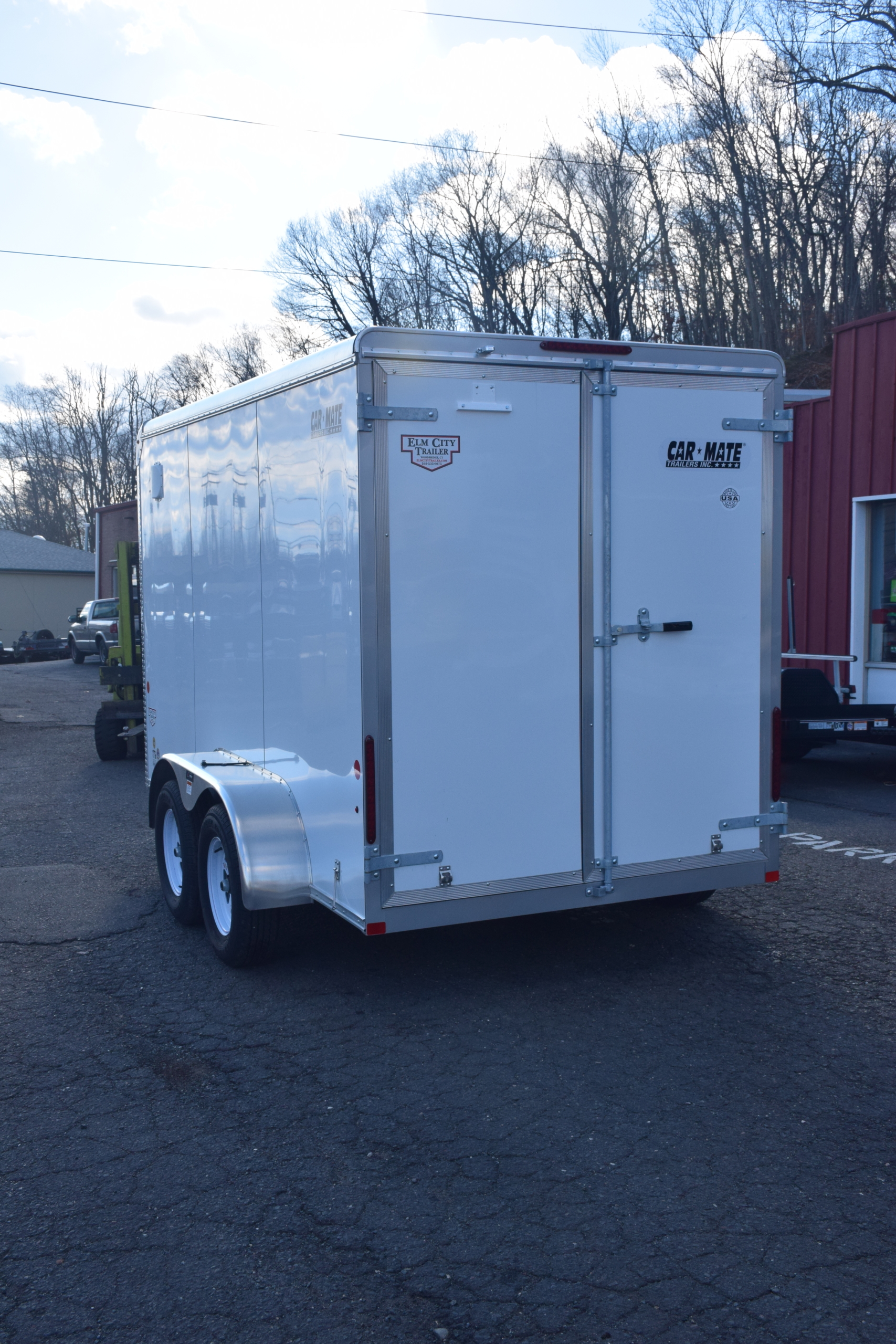

Car Mate
CM612CC-HD
#000110
7,000 lbs. GVWR
1,740 lbs. Lightweight
5,260 lbs. Payload
- 2023
- Crystal White
- Black Frame
- Overall Dimensions: 16′ 3″ L x 94″ W x 96″ H
- Interior Dimensions: 11′ 8″ L x 68″ W x 78″ H
- Platform Height: 19″
- Hitch Height: 18″
- Double Rear Doors: 66″ W x 68″ H Opening
- Side Man Door: 30
- Frame Size: 2″ x 4″ Tube
- (2) 3,500# Dexter Torflex Axles
- Standard Forward Adjusting Electric Brakes with Breakaway Kit and Charger
- 2 5/16″ Coupler/Hitch Ball Size
- 7 Pole Light Plug Connector
- 205/75R15 C Range Tires
- White Spoke Wheels – Bolt Pattern 5 – 4 1/2
- A-Frame Tongue with Safety Chains and Hooks
- Genuine Dexter Torflex® Axle(s) with E-Z Lube® Hubs
- 2000# Jack Tongue
- 3/8″ Plywood Walls – 16″ OC
- .030 Exterior Aluminum
- .032 Seamless 1 pc. Aluminum Roof – LIFETIME WARRANTY
- Aluminum Roof Bows – 24″ OC
- 3/4″ Plywood Floor – Painted Both Sides – LIFETIME WARRANTY
- 4″ Formed C-Channel Crossmembers – 24″ OC
- Structural Steel Tube Frame
- Aluminum Diamond Plate Corners
- 16″ Aluminum Diamond Plate Front Stone Guard
- Smooth Aluminum Fenders
- Hot-Dipped Galvanized Door Hardware
- LED Lighting – LIFETIME WARRANTY
