Description

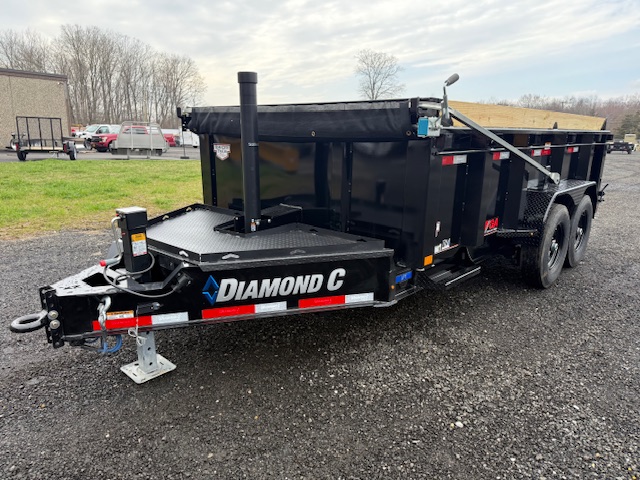

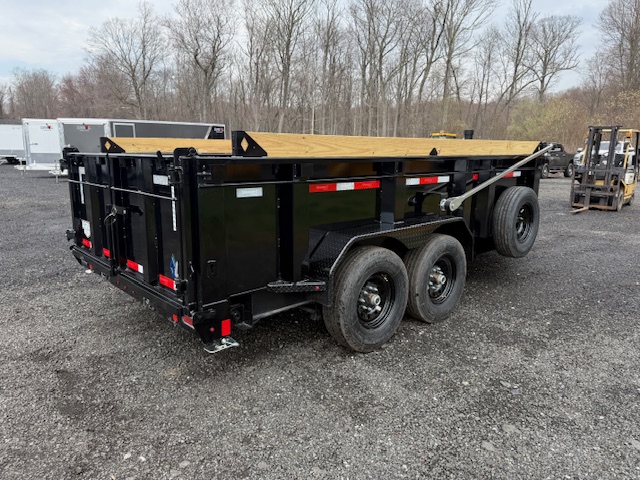

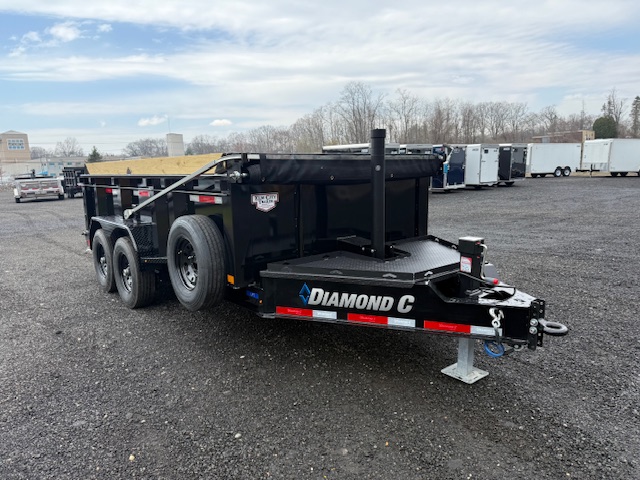

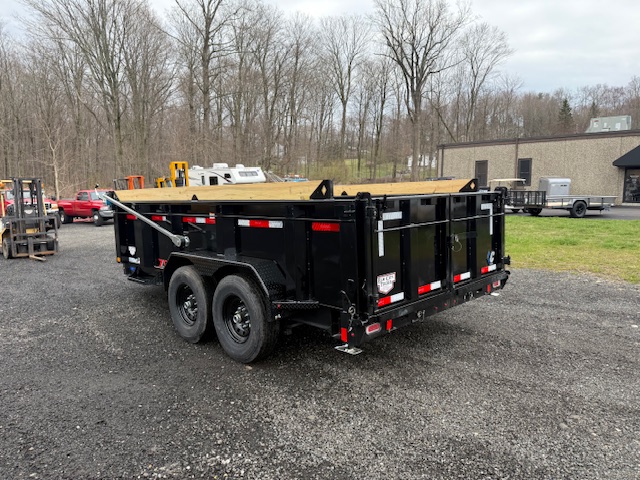

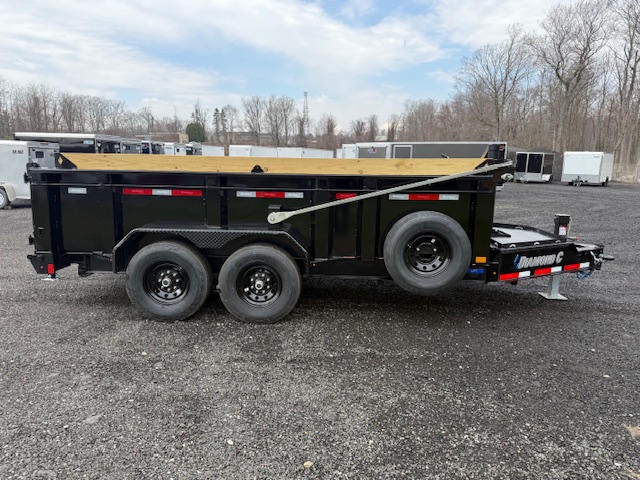

Diamond C

LPT207

#294034

14,900 lbs. GVWR

5,680 lbs. Light Weight

9,220 lbs. Payload

• 2025
• Onyx Black.
• L 14′ x W 82″
• Super Lube Axles.
  • (2) 7,000 lbs.
• Electric Drum Brakes.
• Slipper Roller Suspension.
• Bumper Pull.
• 8” x 15 lb. I-Beam Dump Main Frame.
• 5” x 2” x 3/16” Rectangle Tube Dump Body Frame.
• 10 GA Body.
  • Sides Integral with Floor.

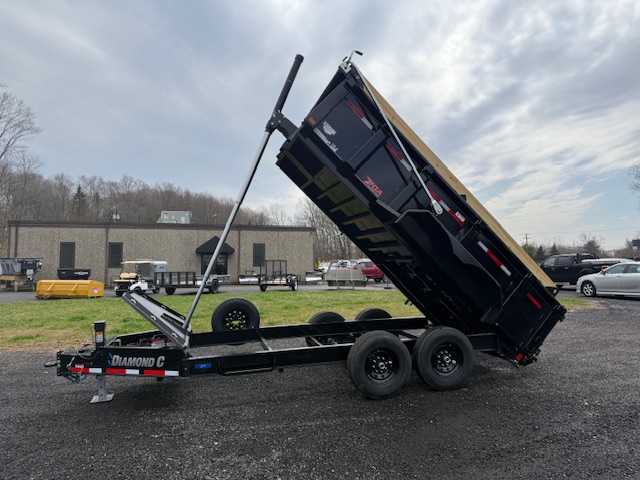

• 3 Stage Telescopic Cylinder Hoist.

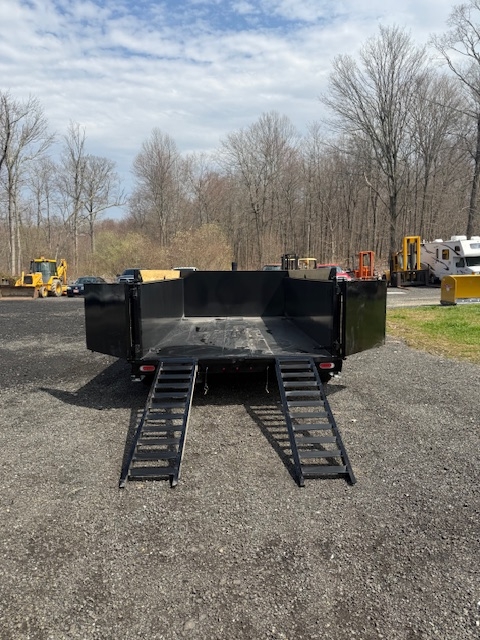

• 72” Rear Slide-In Ramps.
  • 3” Channel.

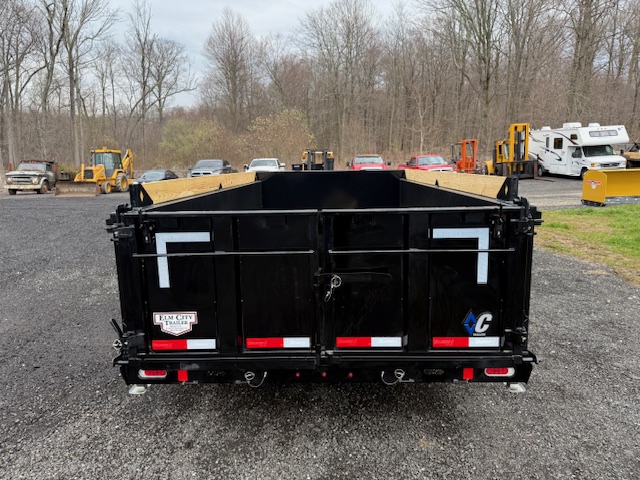

• 3-Way Gate.
  • With Hold Back System.
• Cross Members, 3” I-Beam on 16” Centers.

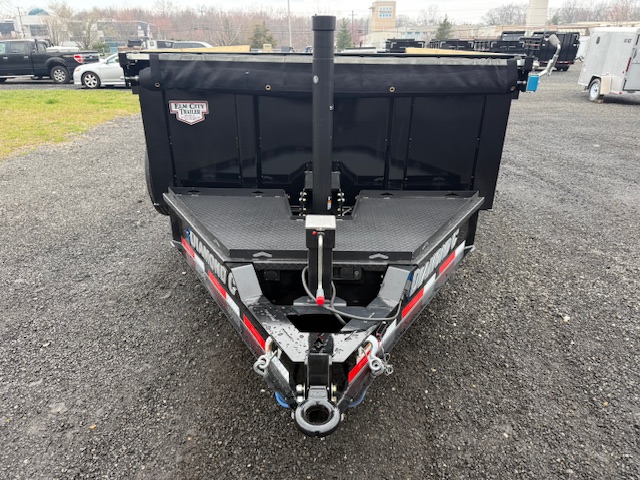

• 2 5/16” Demco EZ-Latch Coupler.
  • 21,000 lbs. with Adjustable Channel.
• Drop-Leg Jack.
  • 12,000 lbs.
• Heavy Duty V-Tongue Lid Storage.

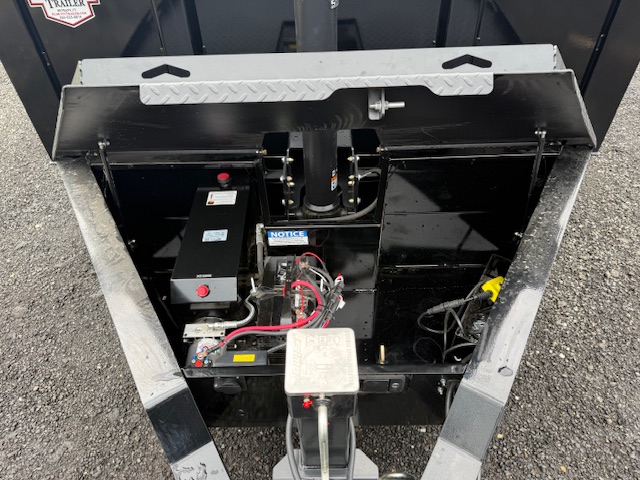

• Power Up, Gravity Down Hydraulic Power.
  • With High Flow KTI Pump.
• 14’ Corded Bed Control Remote.
• Group 27 Series Battery.
  • 110V 5amp Charger.
• 14 GA Tear Drop, Diamond Plate Fenders.
• 24” Side Step.
• All LED Lights.
• Stake Pockets on Each Upright.
• (4) 5/8” D-Rings.
• Tarp System.
  • Long Arm, Easy Roll.
• Sealed Wiring Harness.
• 235/80R16 14 Ply Radial Tires.
  • Black Wheels.
• Spare Mount.
