Description

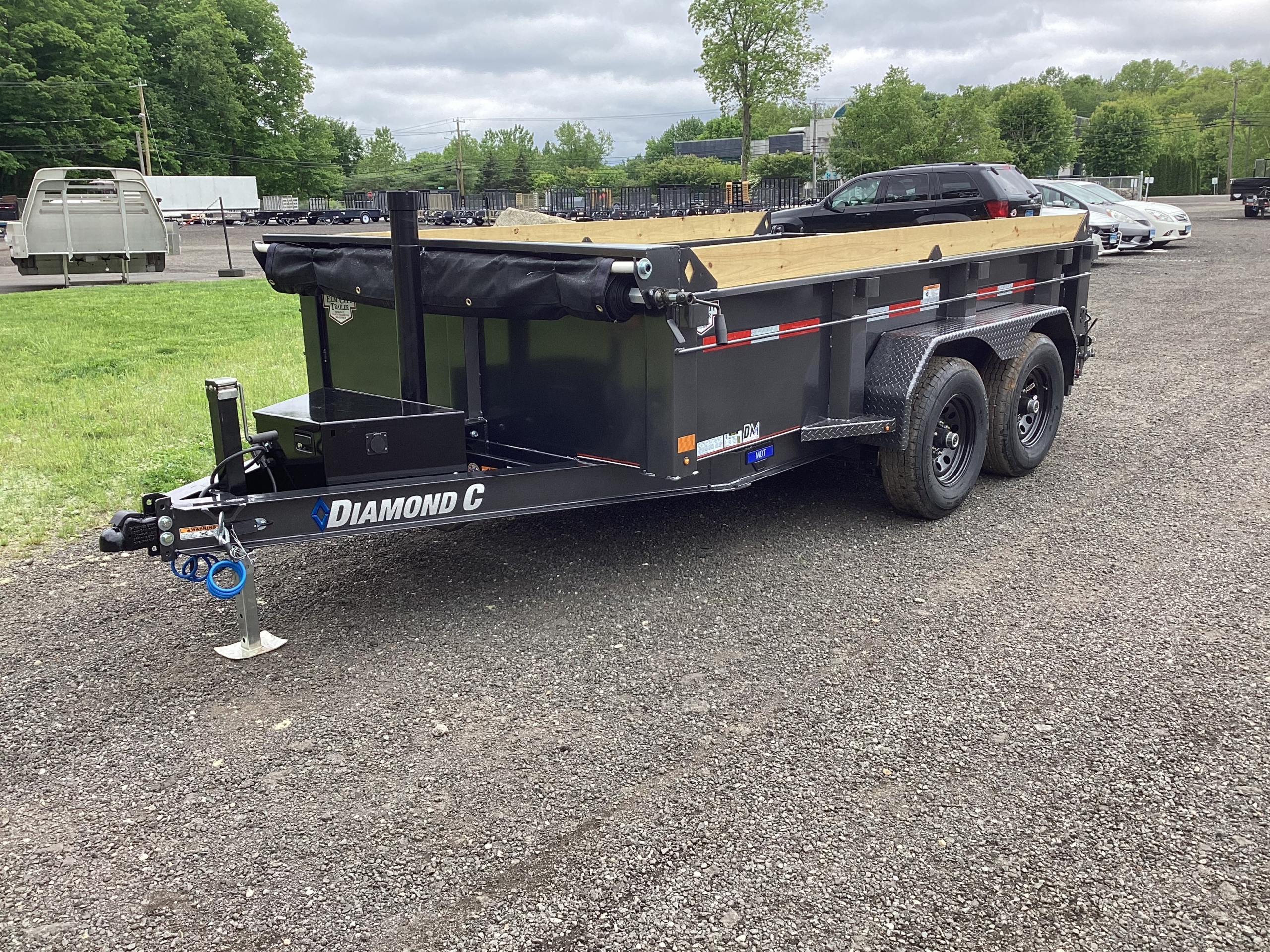

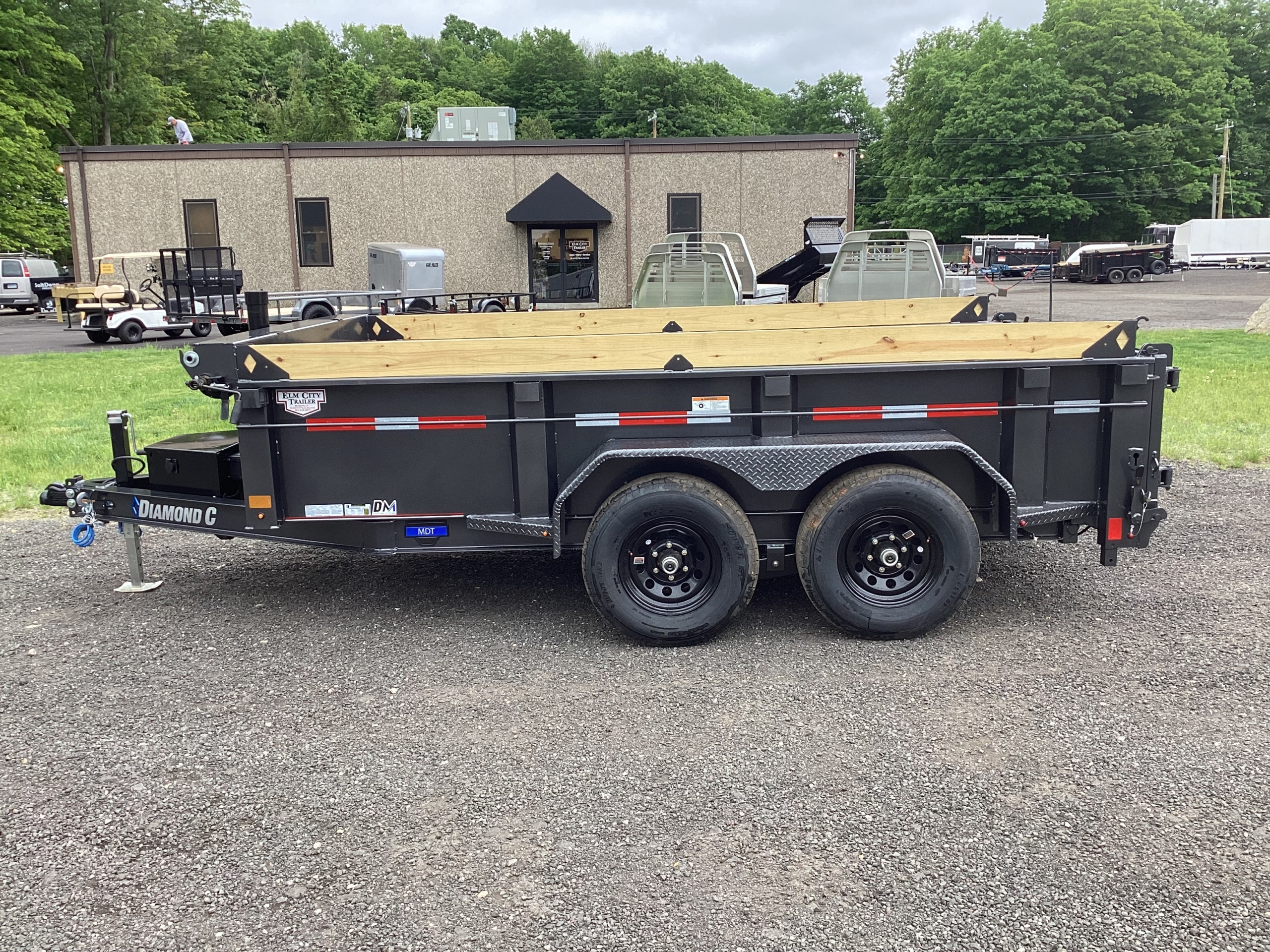

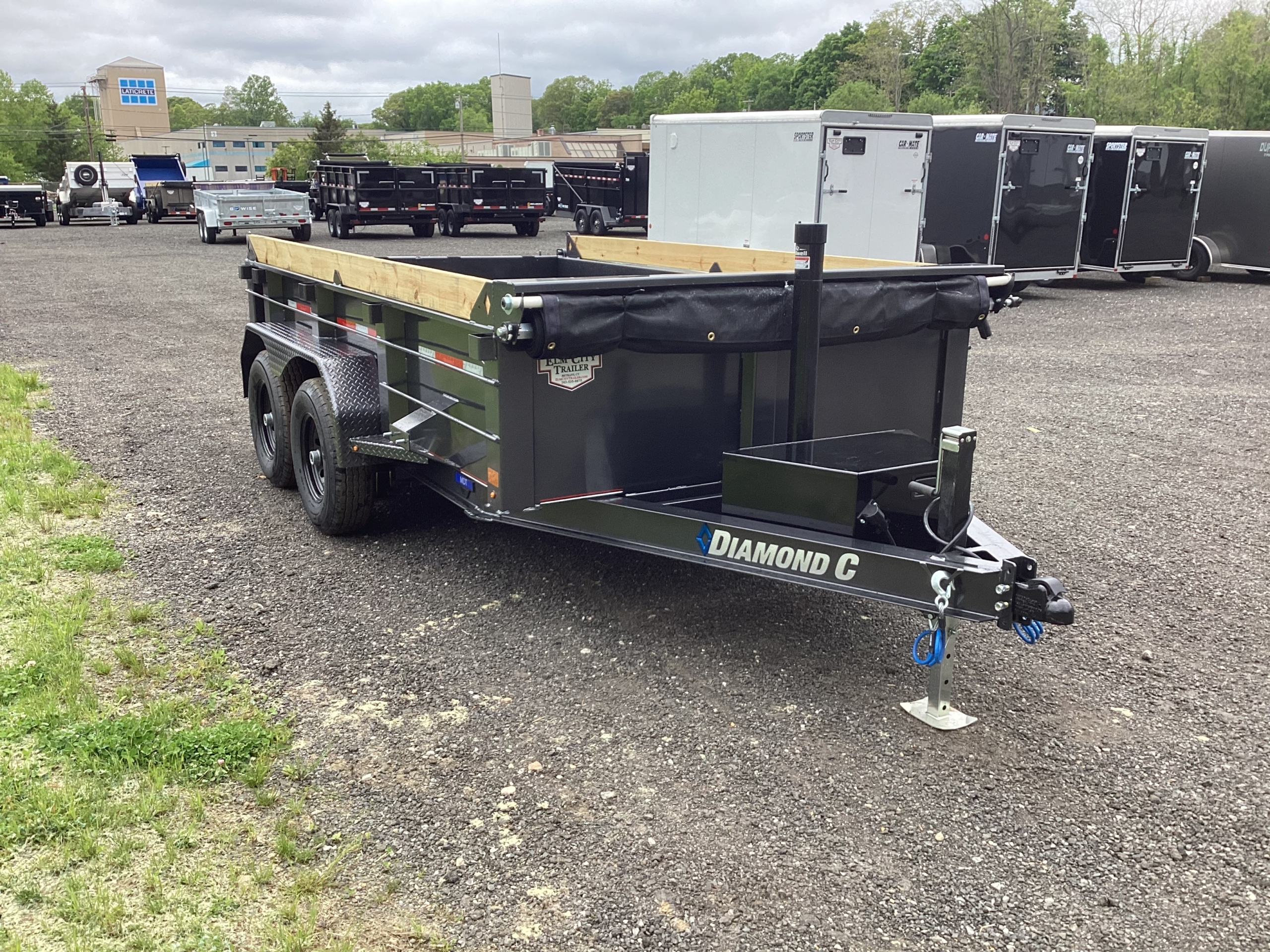

Diamond C

MDT206L

#301565

9,890 lbs. GVWR

3,100 lbs. Lightweight

6,790 lbs. Pay Load

• 2025
• Carbon Metallic Gray
• L12 x 77W
• Super Lube, Electric Brake Axles
  • (2) 6,000 lbs.
  • Drop
• 5-Leaf Slipper Spring Suspension
• Bumper Pull

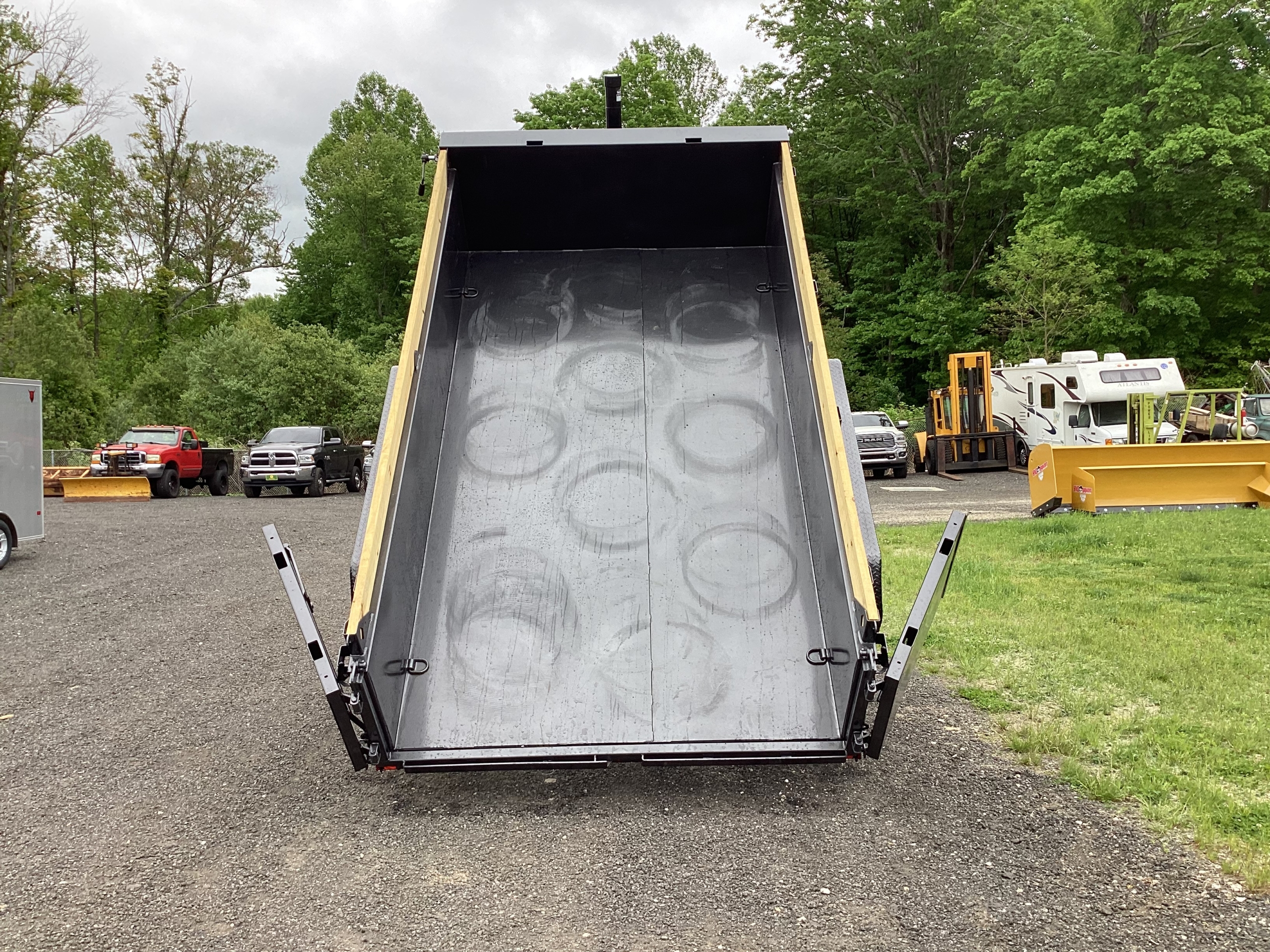

• 6” I-Beam Dump Main Frame
• 3” x 2” Rectangle Tube Dump Body Frame
• 12 GA Body
  • Sides Integral with Floor
• 18” Tall Sides
  • 12 GA

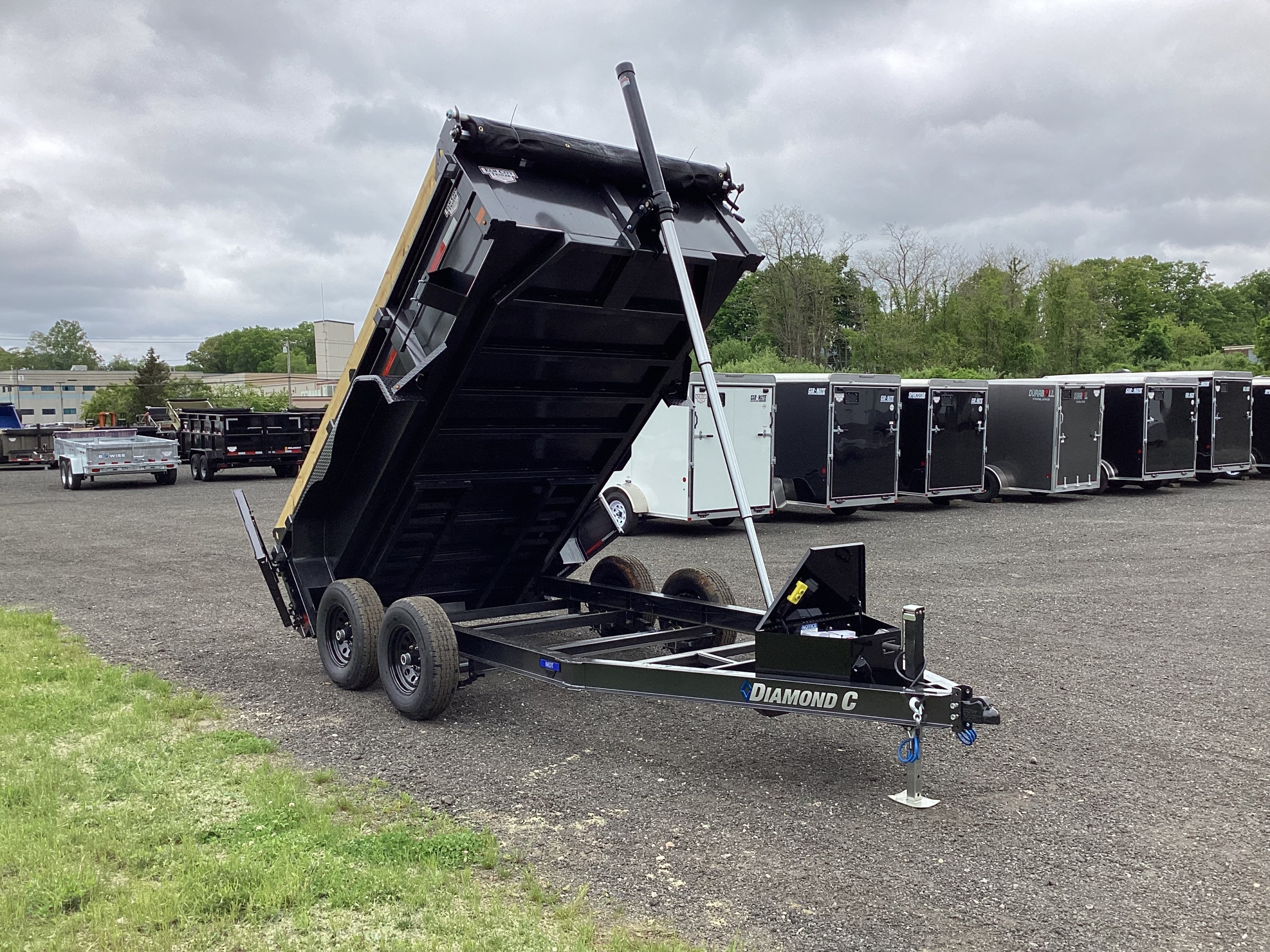

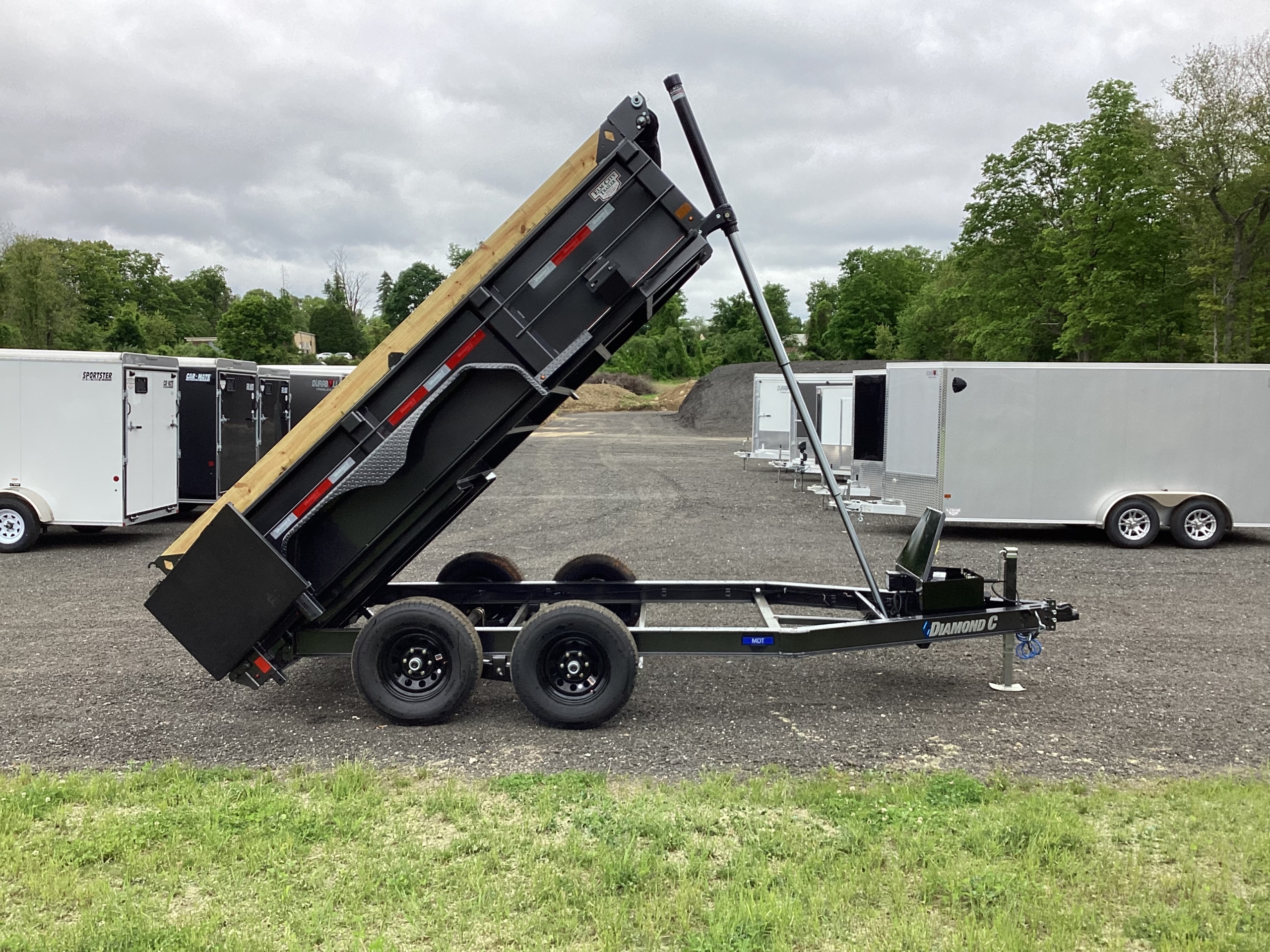

• 3 Stage Telescopic Cylinder Hoist

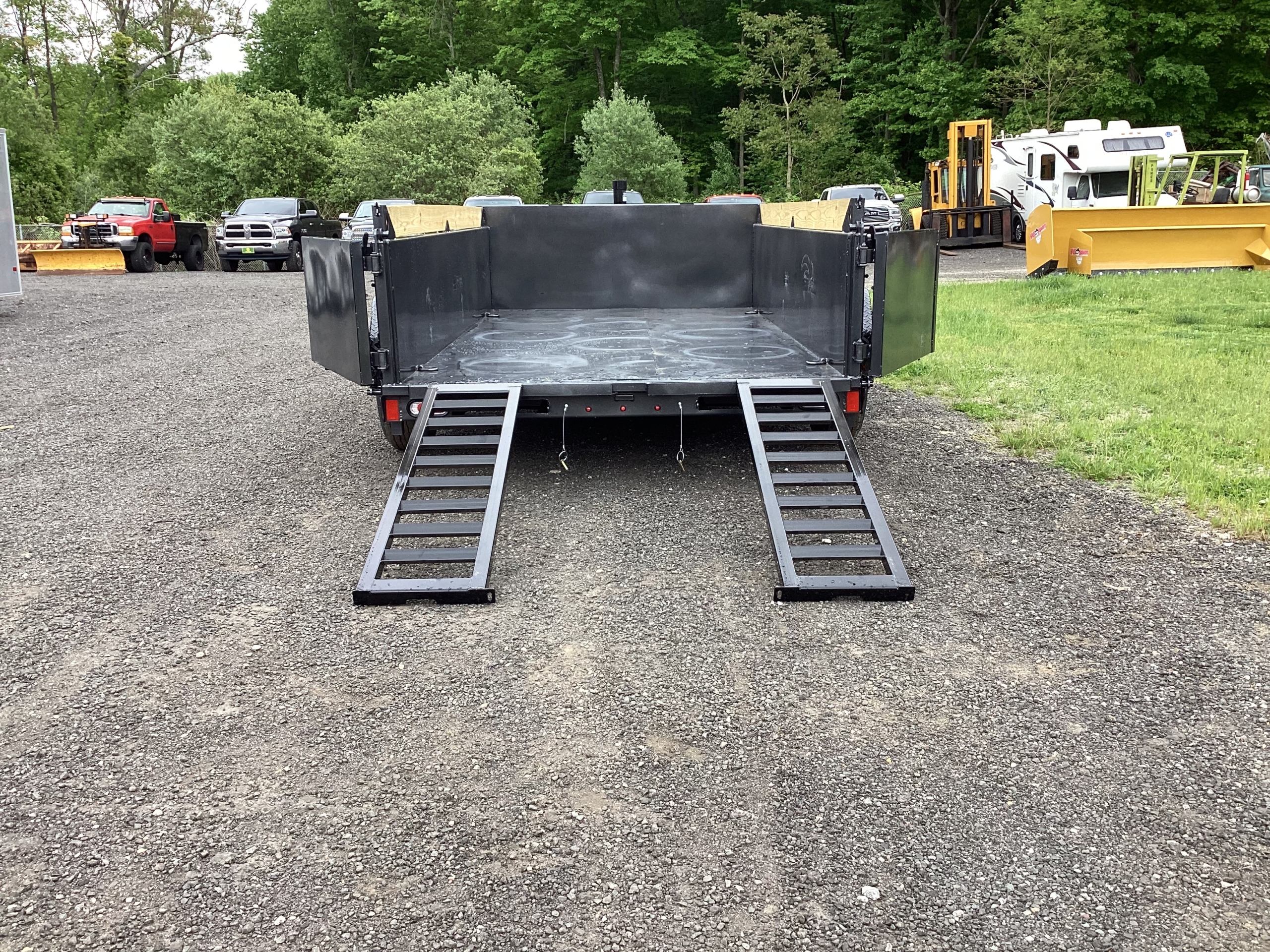

• 60” Rear Slide-In Ramps
  • 2” Square Tube

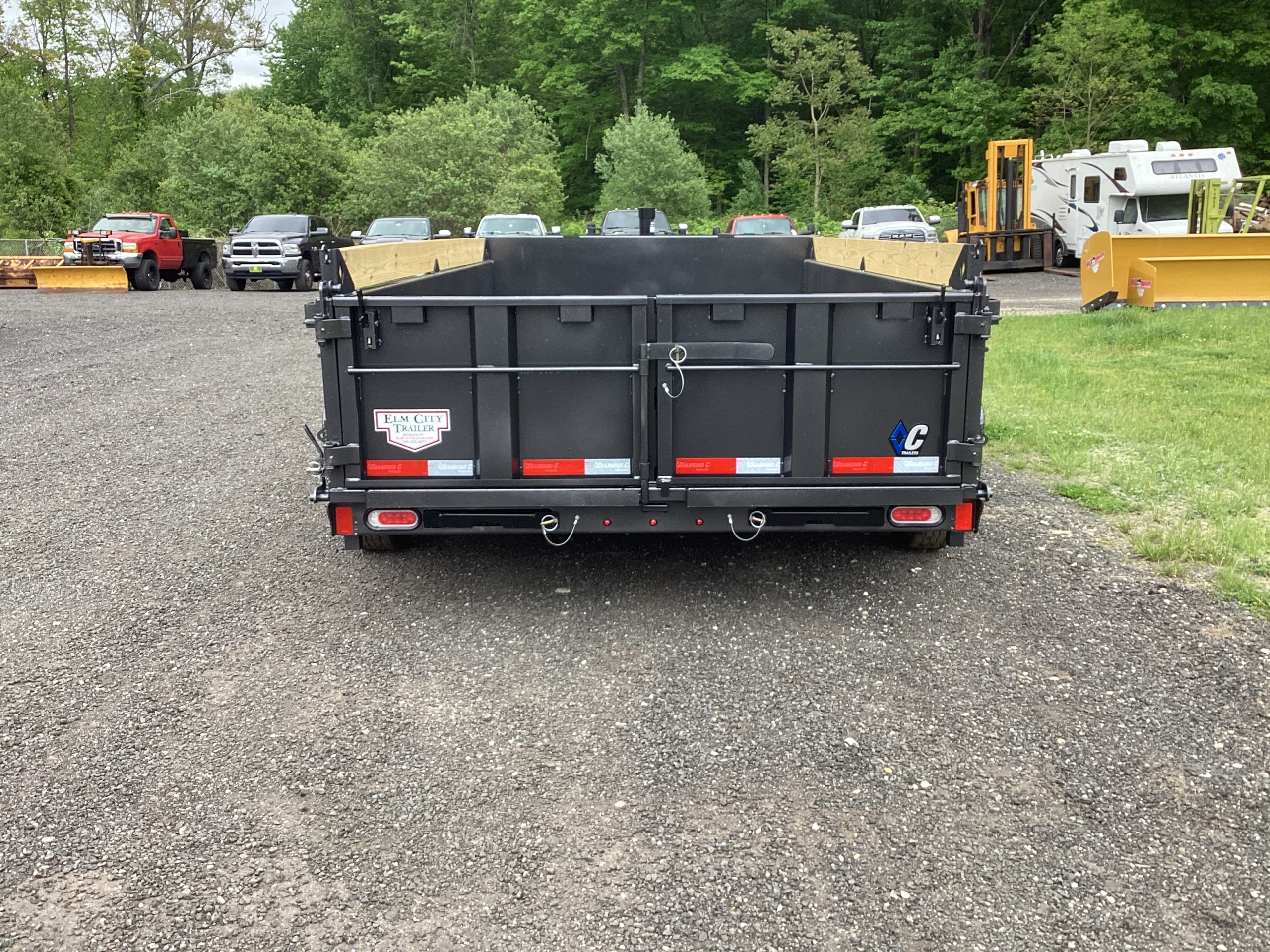

• 3-Way Gate
  • With Hold Back System
• Cross Members, 3” I-Beam on 16” Centers
• 2 5/16” Demco EZ-Latch Coupler
  • 21,000 lbs. with Adjustable Channel
• Drop-Leg Jack
  • 7,000 lbs.
• Power Up, Gravity Down Hydraulic Power
• 14’ Corded Bed Control Remote
• Group 27 Series Battery
  • 110V 5amp Charger

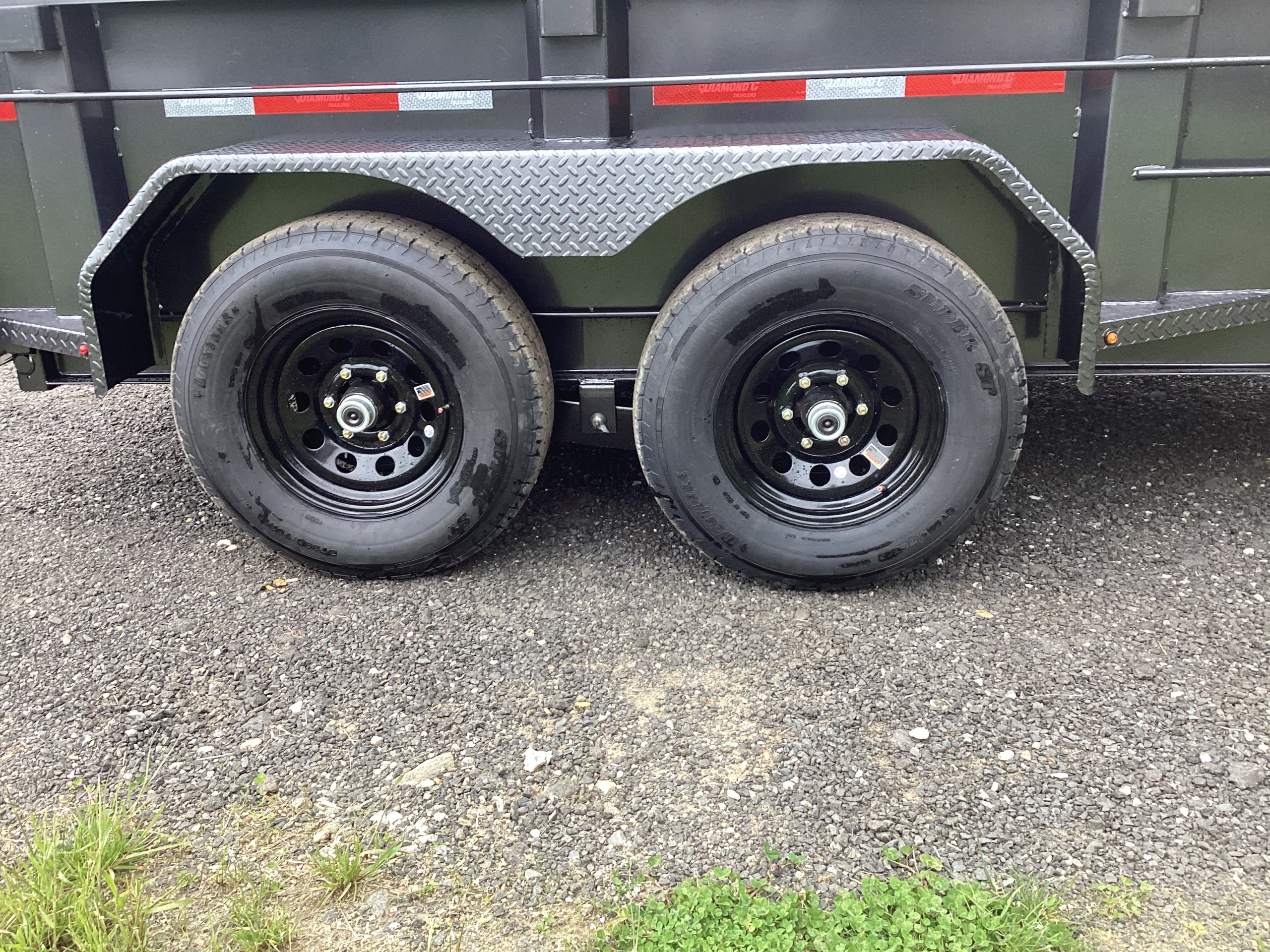

• 14 GA Tear Drop, Diamond Plate Fenders
• All LED Lights
• Stake Pockets on Each Upright
• (4) ½” D-Rings
• 16’ Heavy Duty, Black Mesh Tarp
• 225/75R15 10 Ply Radial Tires
  • Black Wheels
• Spare Mount
